Media & WAN Links: The Pipelines of Modern Networking

Yesterday we talked about the tools in a technician’s bag. Today, we look at what those tools are actually working on. In the world of Network+, understanding your media, the physical materials that carry our data is the foundation of Layer 1.

If the appliances are the cars, the media is the highway. Let’s break down the three main types of “roads” we use today.

1. Copper: The Workhorse of the LAN

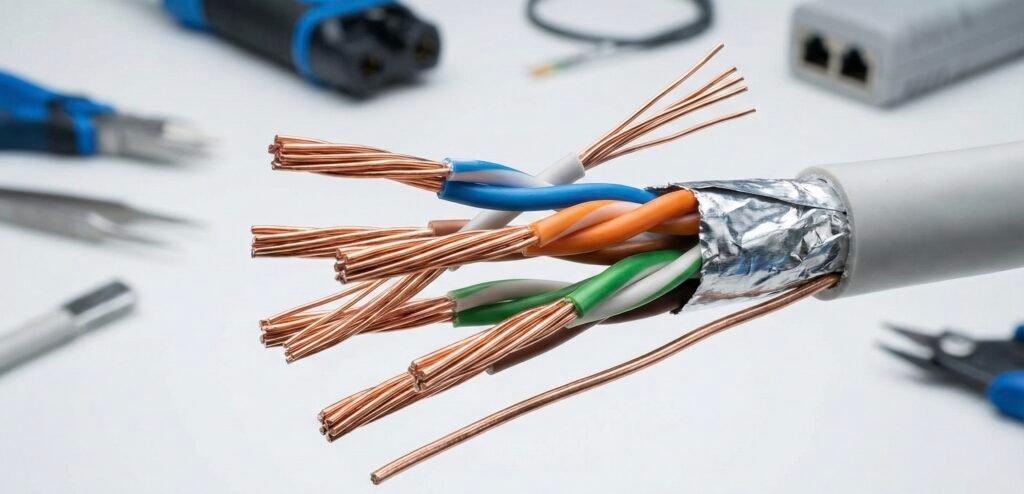

Copper wiring uses electrical pulses to transmit data. It’s cheap, flexible, and the standard for almost every office environment

The “Cat” Ratings

Not all copper is created equal. As a technician, you need to know which “Category” (Cat) cable you are holding to know the speed and distance limits.

Category	Max Speed	Max Distance	Best Use Case
Cat 5e	1 Gbps	100 Meters (328 feet)	Standard office workstations
Cat 6	10 Gbps	55 Meters (180 feet)	Small server rooms / high-speed uplinks.
Cat 6e	10 Gbps	100 Meters (328 feet)	Modern datacenters and high-performance labs.

The “Twist” (STP vs. UTP)

• UTP (Unshielded Twisted Pair): What you see 90% of the time. It relies on the twisting of the wires to cancel out interference.
• STP (Shielded Twisted Pair): Has an extra foil layer. Use this in environments with heavy machinery or massive electrical interference (EMI).

2. Fiber Optics: Speed of Light

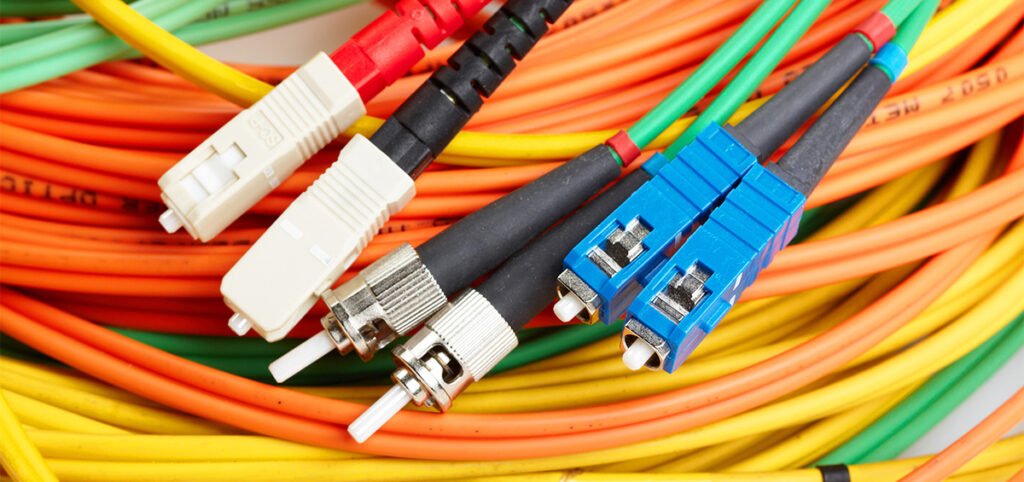

Fiber uses light (photons) instead of electricity. Since light doesn’t care about electricity, fiber is immune to EMI and can travel much further than copper.

• Single-mode Fiber (SMF): Uses a laser. It has a tiny core and can travel Kilometers. This is what connects cities or large campuses.
• Multi-mode Fiber (MMF): Uses LEDs. It has a wider core, allowing light to “bounce.” It’s cheaper than single-mode but lmimited to shorter distances (usually within a building.

3. WAN Links: Connecting to the World.

A WAN (Wide Area Network) link is what connects your local office to the rest of the internet.

• Fiber/SFP: Many modern businesses have a direct fiber handoff from their ISP. This often plugs into an SFP (Small Form-factor Pluggable) transceiver on your router.
• Coaxial (cable): Common for small businesses and homes. Uses a copper core with heavy shielding.
• DSL: Older technology that runs over traditional copper telephone lines.
• Satellite/Cellular: Used for remote locations where digging a trench for a cable isn’t an option.

🧪 The “Support Associate” Reality Check

In a school or office setting, you’ll most likely encounter Cat 6 for your horizontal runs (to the desks) and Multi-mode Fiber for your vertical runs (connecting the basement server room to the switch closets on the 2nd and 3rd floors).

Pro-Tip: If you see a bright Orange cable, it’s usually Multi-mode Fiber. If it’s Yellow, it’s usually Single-mode. This “color coding” saves a lot of time in a dark server room!

What’s Next?

Tomorrow, We wrap up the week by looking at the Philosophy of the OSI Model. I will try to explain why we bother with all this theory and how it will help us troubleshoot faster.

Next Week Preview: We kick off the 7-Layer Deep Dive.
